AC Current Sensor, 5A/10A/20A/50A/100A/150A to 400A

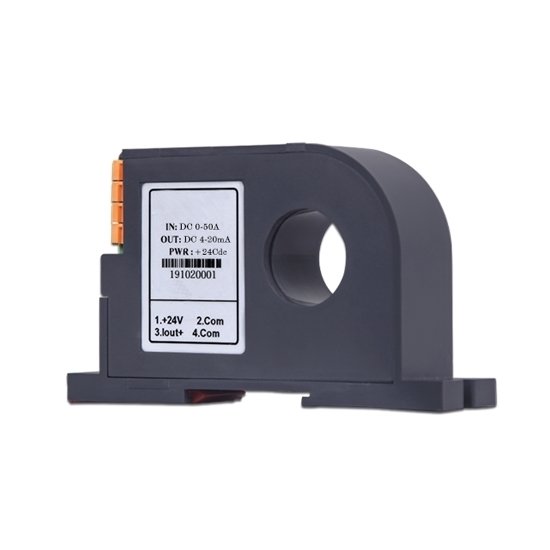

AC current sensor adopts electromagnetic isolation principle, small size, light weight, low price, fast response, high accuracy, good stability, and DIN rail installation. AC current sensor is widely used for AC current measurement of various occasions, especially for sine-wave ac current with power frequency 50Hz.
AC current sensor has measuring range of 5A/10A/20A/40A/50A/100A/150A to 400A.
Specification:
| Model | ATO-CURTS-DJIC |
| Shipping weight | 0.5kg |
| Measuring range of input current * | AC 0-400A |
| Output signal * | DC 4-20mA, DC 0-20mA, DC 1-5V, DC 0-5V, DC 0-10V (customizable) |
| Power supply * | DC 24V, DC 12V, AC 220V, AC 110V (customizable) |
| Accuracy | 0.5%F.S. |
| Isolation voltage | 3kV/50Hz/1min |
| Offset voltage | ≤10mV |
| Temperature drift | ≤100PPM/℃ |
| Frequency bandwidth | 20~50Hz |
| Current consumption | ＜5mA |
| Load capacity | Voltage output: 5mA, current output: 6V |
| Response time | ＜250ms |
| Overload capacity | 30 times nominal input |
| Work temperature | -10~+70℃ |
| Storage temperature | -25~+85℃ |
| measuring method | Through-hole |
| Hole diameter | 22mm |
| Installation | DIN rail and screw fixation |
Tips: How to improve anti-interference and degauss?
1. Methods of improving anti-interference of ac current sensor
- Adjust the direction of current sensor, so that external magnetic field has no effect on sensitive devices of sensors.
- Use shielded current sensor or use a shielding case to shield external magnetic.
2. Degauss
If primary side current already exists, while ac current sensor is not equipped with working power supply, or secondary side is in open circuit status. Then the magnetic circuit in current sensor is magnetized and remanence generates, thus affecting the measuring accuracy. In this case, ac current sensor needs to degauss.
The method is as follows:
Don't power on current sensor, but add alternating current with a nominal rated value Ii to the primary side wire, then the current is reduced to zero from the large smoothly, thus completing the demagnetization.
